TEST VE ÖLÇÜM ALETLERİ / İPLİK GERİLİMİ |

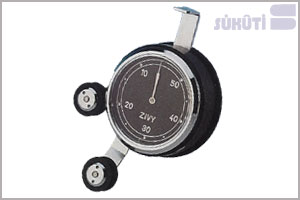

ZIVY İPLİK TANSİYON ALETİ
|

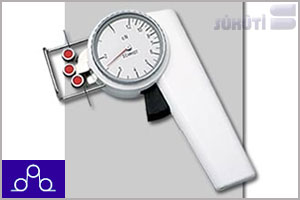

SCHMIDT ZF2 İPLİK TANSİYON ALETİ
 |
| |
|

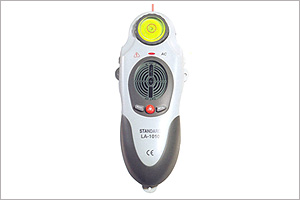

LA-1010-A SIVA ALTI METAL VE KABLO ARAMA
 |

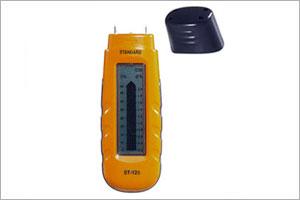

DT-125 AĞAÇ VE ŞAP NEMİ ÖLÇME CİHAZI
 |
| Laser leveling, layout and stud locating on vertical and horizontal surfaces wood, metal and live wire detection-detects wood up to 3/4" depth 180 degree pivoting laser plane with level and plumb vials. |
| 20' laser line projection onto work surface with 90 degree squaring |
| Two self contained hang pins to mount unit to work surface. |
| LCD sensing and mode display with new target graphics. |
| LED display with continuous live wire detection |
| Thumb dial adjustable feet for leveling the laser |
| Easy key pad operation |
| Housing |
| Ergonomically designed for comfort and grip |
| Requires a 9 Volt battery. |
|
| Measuring principle |
Electrical resistance |
| Electrode lenght |
8mm |
| Electrodes |
Integrated, replaceable |
| Measuring range |
Wood: 6-44 %
Material : 0.2-2.0 % |
| Display |
Wood: ±1 % |
| Accuracy |
Material: ±0.05 % |
| Battery |
3 x Cr 2032, replaceables |
| Housing |
Impact-proof plastic housing |
| Ambient temperature |
0-40 °C |
| Ambient moisture |
0-85% |
|
| |
|
| |
|
DT-9610B PROBLU SICAKLIK ÖLÇME CİHAZI
 |

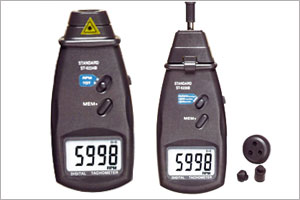

DT-6234 B DEVİR ÖLÇME TAKOMETRESİ
 |
| Features |
9610B |
9612 |
| User Selectable °C or °F |
* |
* |
| User Selectable 0.1 °C or 1 °C (0.1 °F or 1°F) Resolution |
* |
* |
| K-type Thermocouples |
* |
* |
| Single Thermocouples Input |
* |
|
| Dual Thermocouples Input |
|
* |
| Wide vaiety of interchangeable Thermocouple Probes |
* |
* |
| Max Hold and Data Hold |
* |
* |
| Differential Temperature (T1-T2) |
|
* |
| SCAN Function (T1,T2,T1-T2,MAX,HOLD...) |
|
* |
| Function |
Range |
Resolution |
Accurancy |
| Temperature |
-20°C ~+1000°C |
1°C |
±3%±3d |
| - |
-4°F ~ 1832°F |
1°F |
|
|
| Features |
6234B |
6236B |
| Large 5 digit LCD display |
* |
* |
| Autoranging with 0.05% accurancy |
* |
* |
| Built-in memory recalls last Max/Min value stored |
* |
* |
| Non-contact measurement |
* |
* |
| Contact measurement |
|
* |
| Specifications |
6234B |
6236B |
| Display Counts |
99,999 counts LCD |
99,999 counts LCD |
| Range RPM |
2.5 to 99,999 |
5 to 99,999 |
| M/min |
|
0.05 to 1999,9 |
| Basic Accurancy |
±0.05%1d |
±0.05%±1d |
| Max RPM Resolution |
0.1 RPM |
0.1RPM |
|
| |
|
| |
|

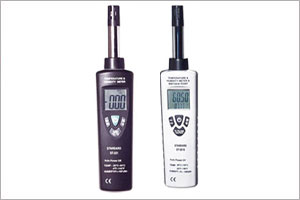

DT-321 ORTAM NEMİ VE SICAKLIK ÖLÇME CİHAZI
 |

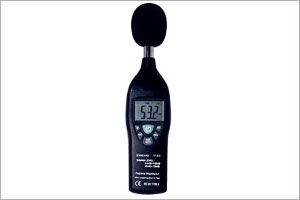

DT-805 SES ÖLÇME GÜRÜLTÜ ÖLÇME CİHAZI
 |
| Specifications |
| Function |
Range |
Basic Accurancy |
321 |
321S |
| Humidity |
0~100% RH |
±2%RH |
|
* |
| Temperature |
-30~100°C,
-22~199°F |
±05°C/0.9°F |
|
* |
| |
-20~60°C,
-4~140°F |
±2°C/4°F |
* |
|
| Dewpoint Temp. |
-30~100°C,
-22~199°F |
±0.5°C/0.9°F |
|
* |
| Dewpoint Temp. |
0~80°C,
32~176°F |
±0.5°C/0.9°F |
|
* |
|
| Specifications |
| Level Range |
Low = 30 ~ 100dB
Hight = 60 ~ 130dB |
| Accurancy |
±1.5 dB (ref94DB @ 1kHz) |
| Frequency Range |
31.5 Hz to 8kHz |
| Frequency Weighting |
A, C |
| Battery Type |
9V Battery NEDA 1604, IEC 6F22, JIS 006P |
| Operation Temp |
0°C~40°C (<80%R.H.) |
| Storage Temp |
-10°C~60°C (<70%R.H.) |
|
| |
|
| |
|

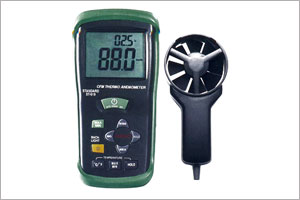

DT-618 Rüzgar Hızı Ölçme Cihazı
 |

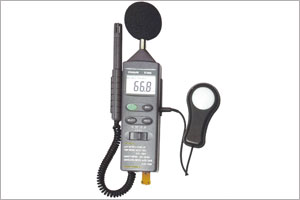

DT-8820 NEM + SES + IŞIK + SICAKLIK ÖLÇER
 |
| Specifications |
| Units |
Range |
Basic Accurancy |
618 |
| m/s |
0.3 ~ 45.0 |
3% |
* |
| Knots |
0.6 ~ 88.0 |
3% |
* |
| Km/hr |
1.0 ~ 140.0 |
3% |
* |
| Ft/min |
80 ~ 4930 |
3% |
|
| MPH |
0.9 ~ 56 |
3% |
|
| Air Flow (CFM=ft 3 /min) |
0 to 999.900 |
3% |
|
| Air Flow (CMM=ft 3 /min) |
0 to 999.900 |
3% |
|
| Temp °C |
0~60.0 |
±1.5 |
|
| Temp °F |
32.0~140.0 |
±2.0 |
|
|
| Specifications |
| Function |
Range |
Resolution |
Accurancy (%rdg+digits) |
| Temperature |
-20°C~200°C |
0.1°C |
±(3.0%+2°C) |
| |
-20°C~750°C |
1°C |
±(3.0%+2°C) 150°C; ±3.0% 150°C |
| |
-4°F~200°F |
0.1°F |
±(3.0%+2°F) |
| |
-4°F~1400°C |
1°F |
±(3.0%+2°F)302°F; ±3.0% 302°F |
| Light |
20,200,2000,20000
(2000 x 10 Lux) |
0.01,0.1,1 |
±(5.0%RH at 25°C) |
| Humidity |
35%~95%RH |
0.1%RH |
±5.0%RH at 25°C |
| Sound Level |
35dB~100dB |
0.1dB |
±3.5dB at 94dB sound level, 1KHZ sine wave |
|
